Tektrum Externally Powered Solderless 4660 Tie-Points Experiment Plug-In Breadboard Kit with Jumper Wires, Power Module, Wall Adaptor For Proto-Typing Circuit

This Item Includes a Case of One (1) Solderless 4660 tie-points breadboard; One (1) lot of 130 male-to-male jumper wires; One (1) Power module; One (1) AC wall adapter; This breadboard and jumper wires kit is ideal for making electrical connections and for testing purposes without soldering. The parts can be easily inserted and removed. They are completely re-usable. The breadboard has 4660 tie-points with standard 0.1" (2.54mm) pitch. The kit comes with 130 male-to-male jumper wires of various lengths and colors, power module, and AC wall adapter. The kit allows you to design test fixtures, perform lab experiments and in all areas of custom electronic design applications in minutes.

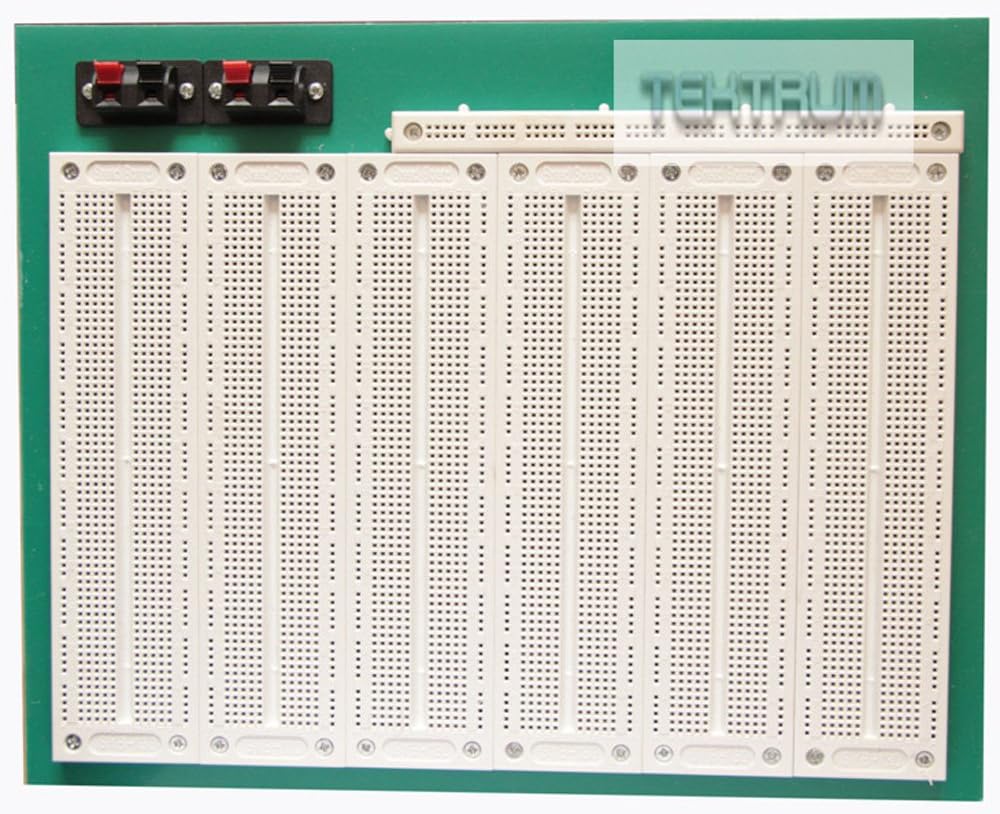

• 4660 tie points (insertion holes) total: 4560 tie-point circuit area, one 100 tie-point distribution
• Standard 0.1" (2.54mm) pitch for easy IC mounting; Externally power connectors; Nickel silver alloy pins are pre-stressed, spring loaded and non-corrosive for long term reliability; White plastic body with printed row and column for easy pin counting

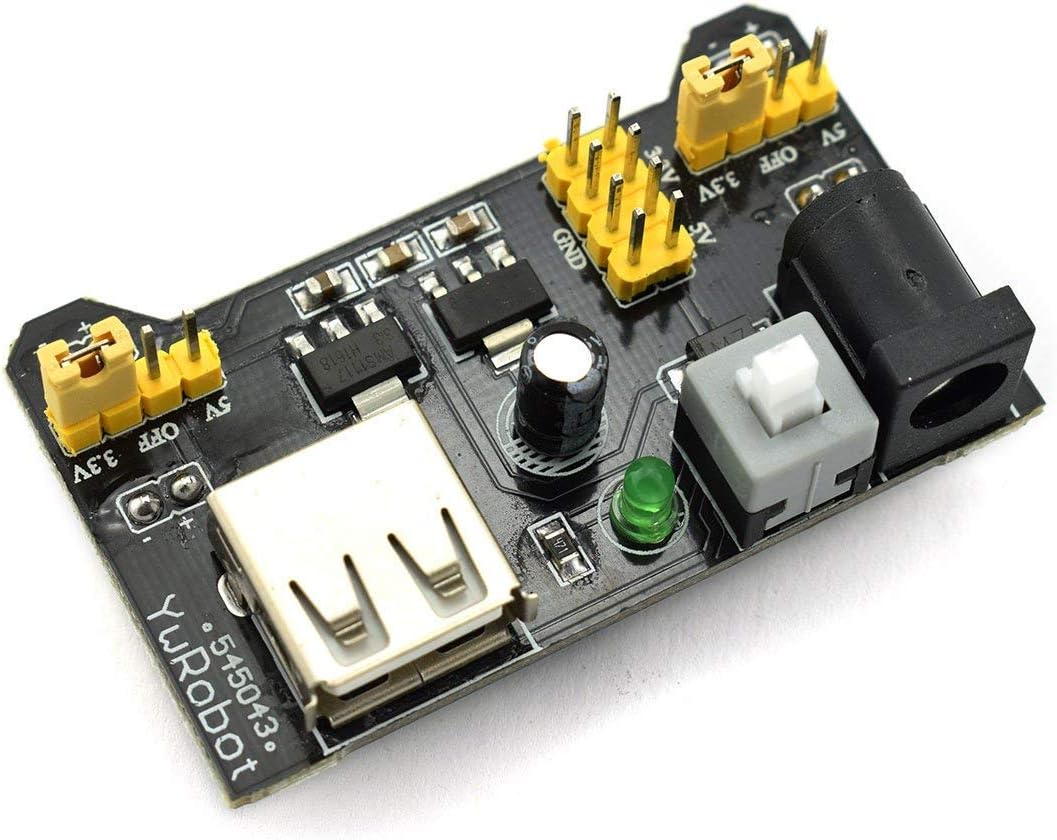

• Comes with power module: breadboard DC voltage-stabilized source module, compatible with 5V, 3.3V; Input Voltage: DC 6.5-12V or USB power supply, Output 700 ma (MAX), two way independent control, can switch 0V / 3.3V / 5V; AC wall adapter is included
• Comes with 130 male-to-male jumper wires of various lengths and colors - no need of time-consuming wire making; Breadboard dimensions: 11.8 x 9.5 x 0.4in (300 x 240 x 10mm)
• Perfect for proto-typing circuit, electronic and electrical experiments without soldering; Works great with Arduino
