3 Row Aluminum Radiator for 1982-1992 Chevy GMC Camaro P20 P30 P60 Pontiac Firebird, Engine Cooler Radiators Shroud Fan Relay Kits

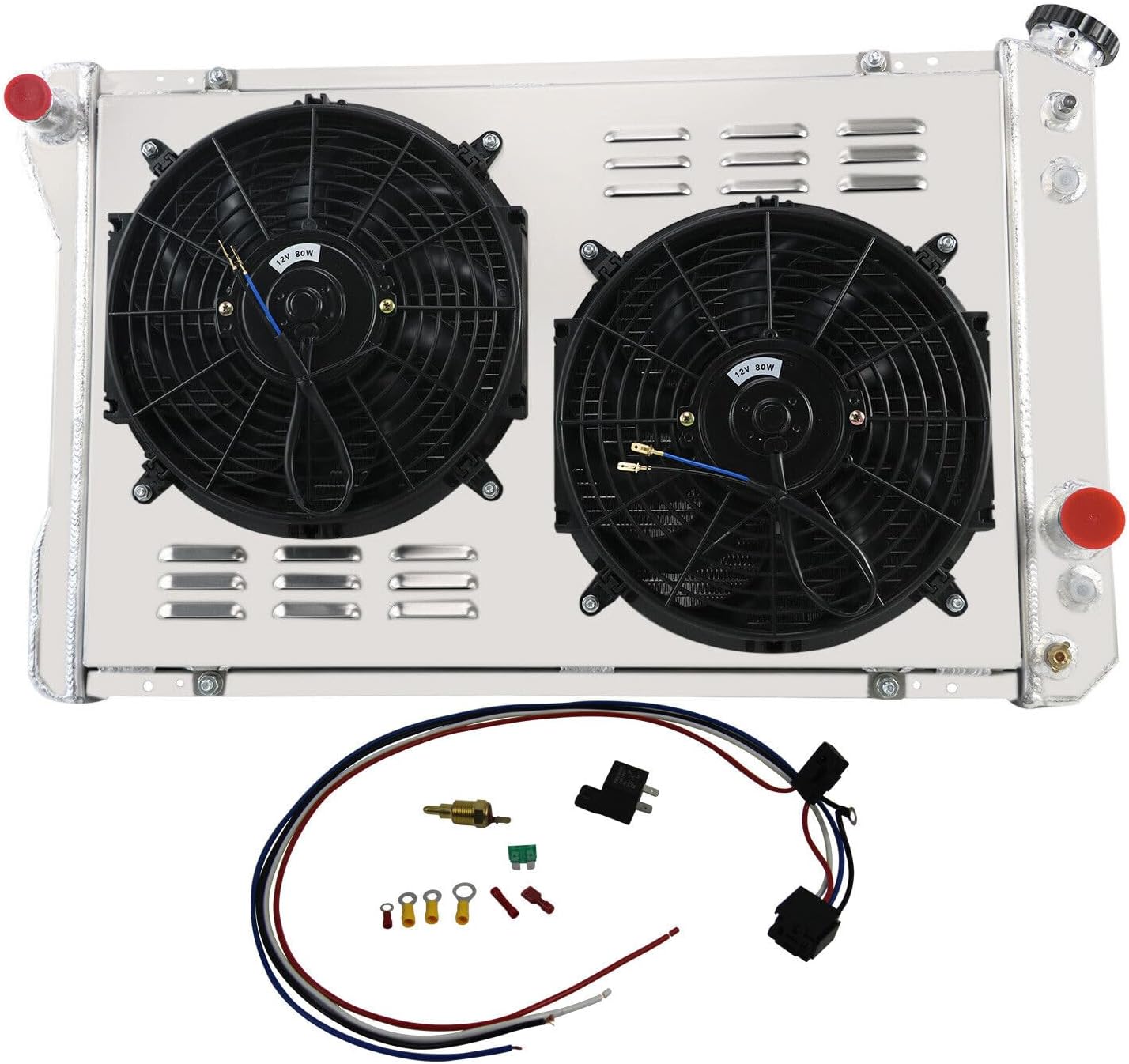

This Radiator Compatible with 1982-1992 Chevy Camaro 5.0L 1982-1984, 1986 Chevy Camaro 2.5L 1982-1984, 1986-1989 Chevy Camaro 2.8L 1982-1992 Pontiac Firebird 5.0L 1982-1989 Pontiac Firebird2.8L 1982-1986 Pontiac Firebird 2.5L 1987-1992 Chevy Camaro 5.7L 1987-1992 Pontiac Firebird 5.7L 1989 Chevy P20 5.7L 1989-1990 Chevy P30 5.7L 1989 Pontiac Firebird 3.8L 1990-1992 Chevy Camaro 3.1L 1990-1992 Pontiac Firebird 3.1L This Listing Is Including 1 X 3-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 2X 12'' Fans (Includes mounting kits) 1 X Thermostat Relay Kit Radiator Details Core Row: 3 Row Material: Full Aluminium Radiator Cap: Included Core and Tank: All Aluminum Radiator Flow: Down Flow OEM style brass petcock drain CNC machined filler neck and cap Fan Size Maximum Fan CFM: 1730 cfm Fan Diameter (in): 12.050'' Thickness (in): 2.500'' Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the FansPart number 951, SBR951, CU951, CC951, RAD951, DPI951, MC951, 52453813, 1605-370193, RA1029, 0918A, 918, 731880, 96051828, 8010951, 951, 2495, SPTCU951, 438918, GM3010358

• Core Size: 16.46" H x 26.26" W x 1.73" T ; Overall Size: 31.58" H x 19.61" W x 4.77" T ; Inlet/Outlet: 1.58"/ 1.26";Transmission Oil Cooler: ￠26×290×M12*1.25（Z）; Trans Cooler Details: 1/2"" 20 Straight Thread G1/4 ; Mounting Specs: Vert - 22 3/8 Horizontal - 17 1/2
• Features: 100% Leak Tested,Crossflow Radiator, Durability Tested, No Drilling or Modifications Needed for Installation ; Mounting Style: Bolt-On ; Placement on Vehicle: Engine Compartment ; Fits Automatic Or Manual Transmissions ; Mounting Type: Saddle

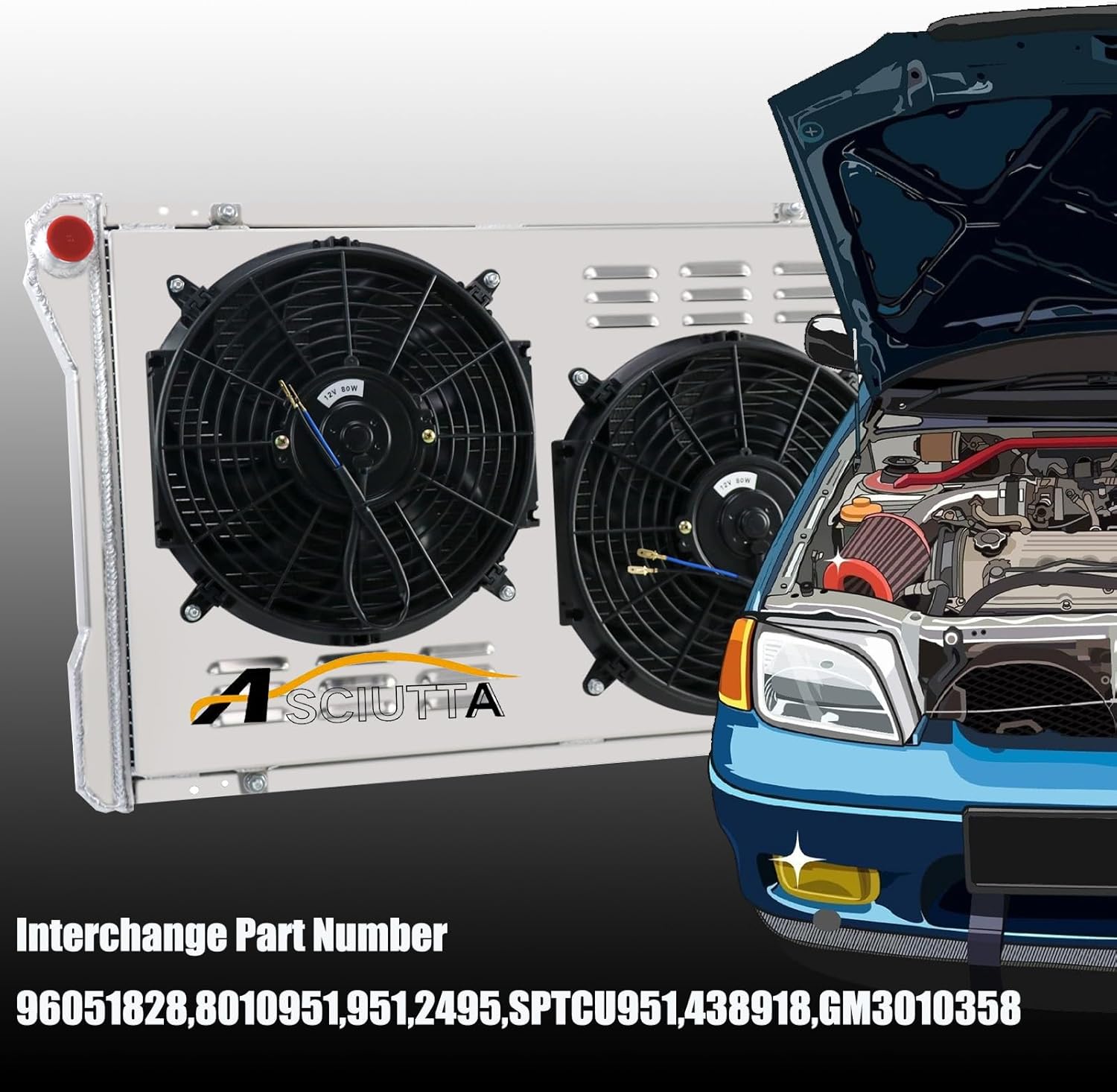

• OE/OEM Part Number: MC951 CU951 CC951 951 DPI951,96051828,8010951,951,2495,SPTCU951,438918,GM3010358, 951,CU951,CC951,RAD951,DPI951,MC951,CB069380S01,52453813,1605-370193,RA1029,0918A,918,731880
• Easy To Install: Light weight direct bolt-on replacement, stronger & higher capacity for coolant

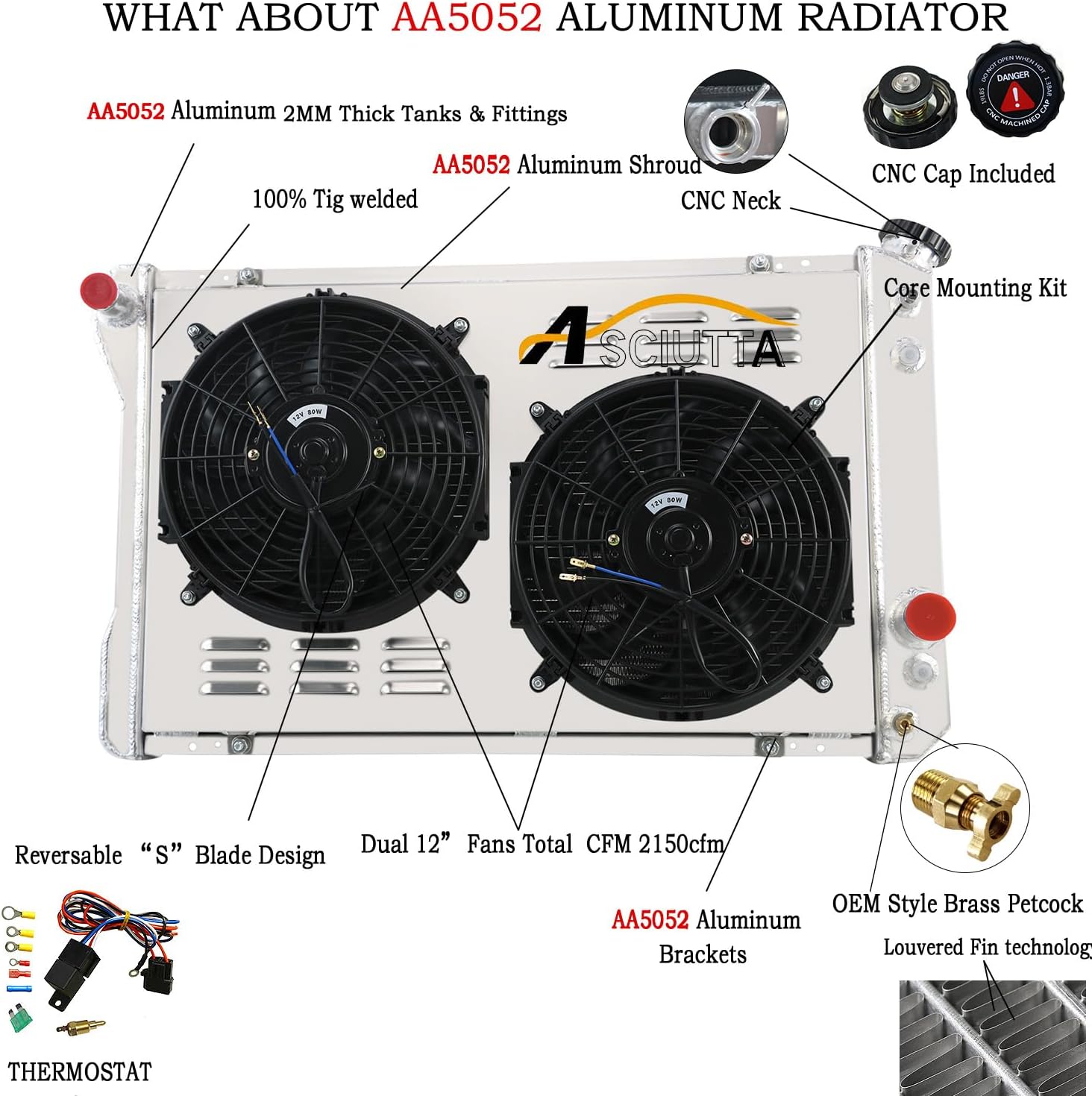

• High performance: This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
